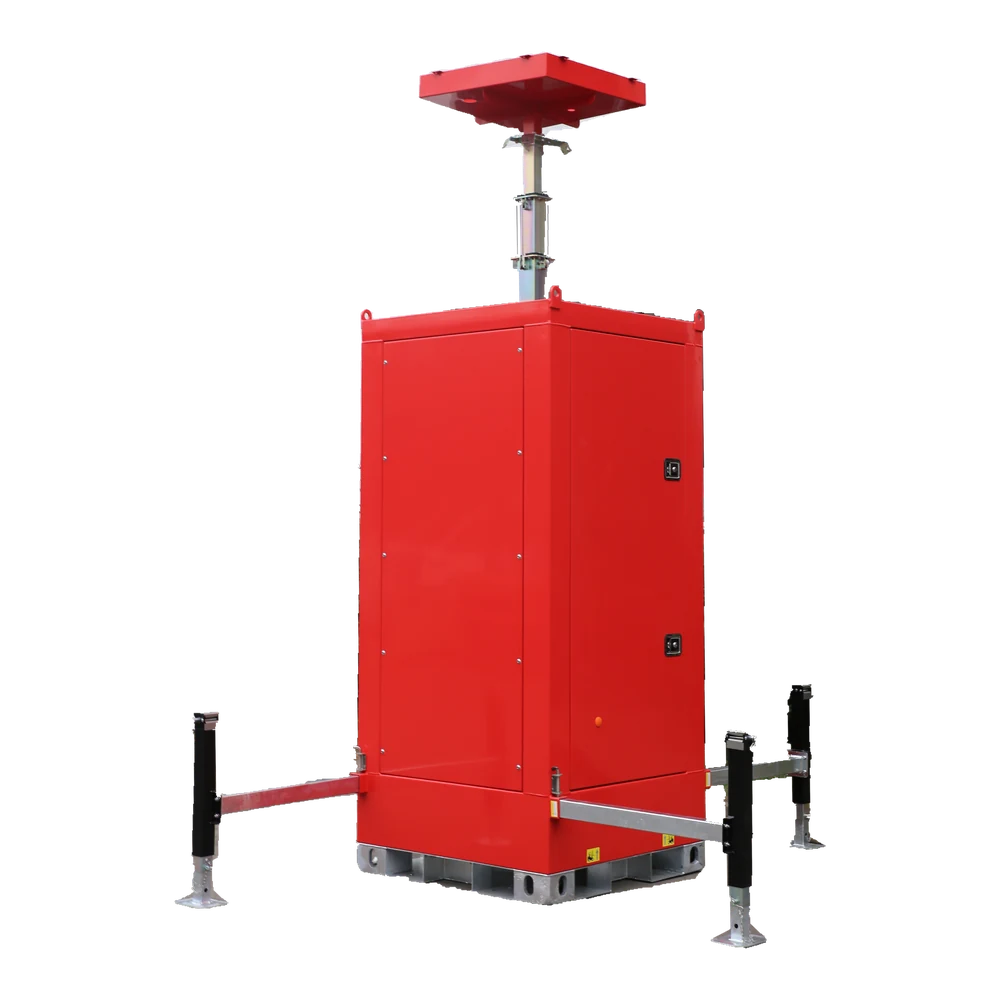

Raised mast · solar panel view
Skid Mounted Solar Surveillance Unit
Self-contained video surveillance for off-grid and temporary sites
Integrated solar and battery power · Forklift handling and remote monitoring
Options shown follow the final technical proposal. Site conditions determine the operating plan.
01 / OVERVIEW
The VALIANT Skid-M integrates solar generation, batteries, cameras, communications and storage on a rugged, forklift-compatible steel skid. It enables rapid deployment at off-grid, remote or temporary sites for theft prevention, property protection and remote site oversight.
02 / FEATURES
A lockable, weatherproof cabinet protects the equipment. Four manual stabilizers support leveling and stability. Square or hexagonal camera boxes, protected cabling and strobe lighting are available; the illustrated camera head has three strobes.
Choose a 6 m (≈19.7 ft), 7.5 m (≈24.6 ft) or 9 m (≈29.5 ft) mast with manual, electric or hydraulic lifting. PTZ or bullet cameras can provide up to 4K resolution, 360° coverage and long-range night vision depending on configuration; infrared or thermal options are available.
Three 340 W panels, batteries and an MPPT controller supply power. Options include 4G/5G, live video, VMS or cloud access, NVR or cloud storage, motion alerts, scheduled recording and low-battery protection. Site lighting is optional.

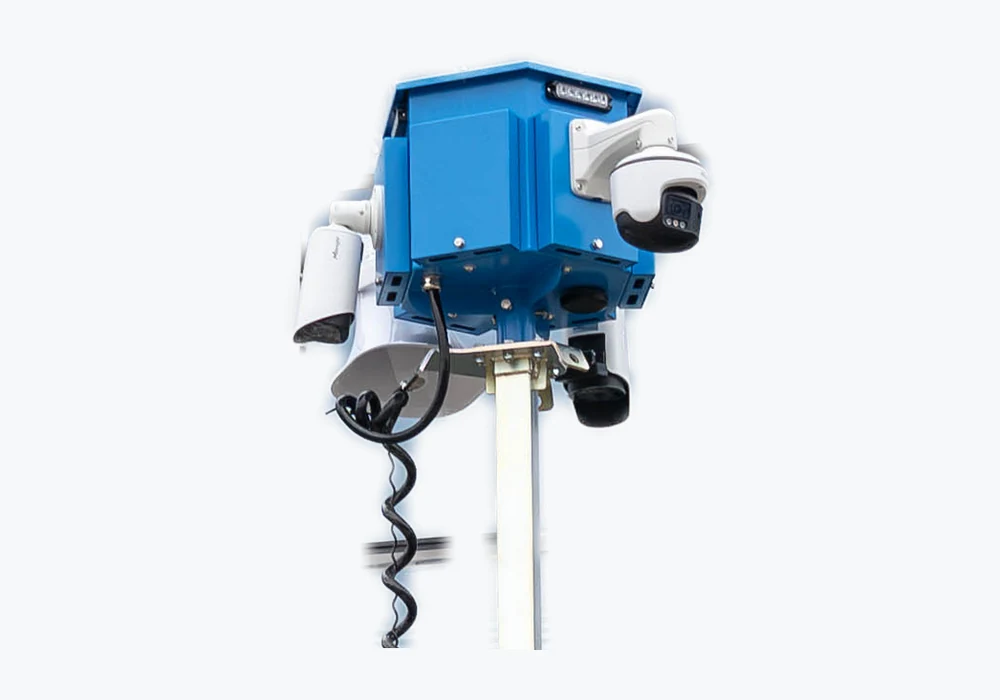

Confirm camera type, viewing direction, recording and network requirements. This close-up shows the supplied equipment configuration.

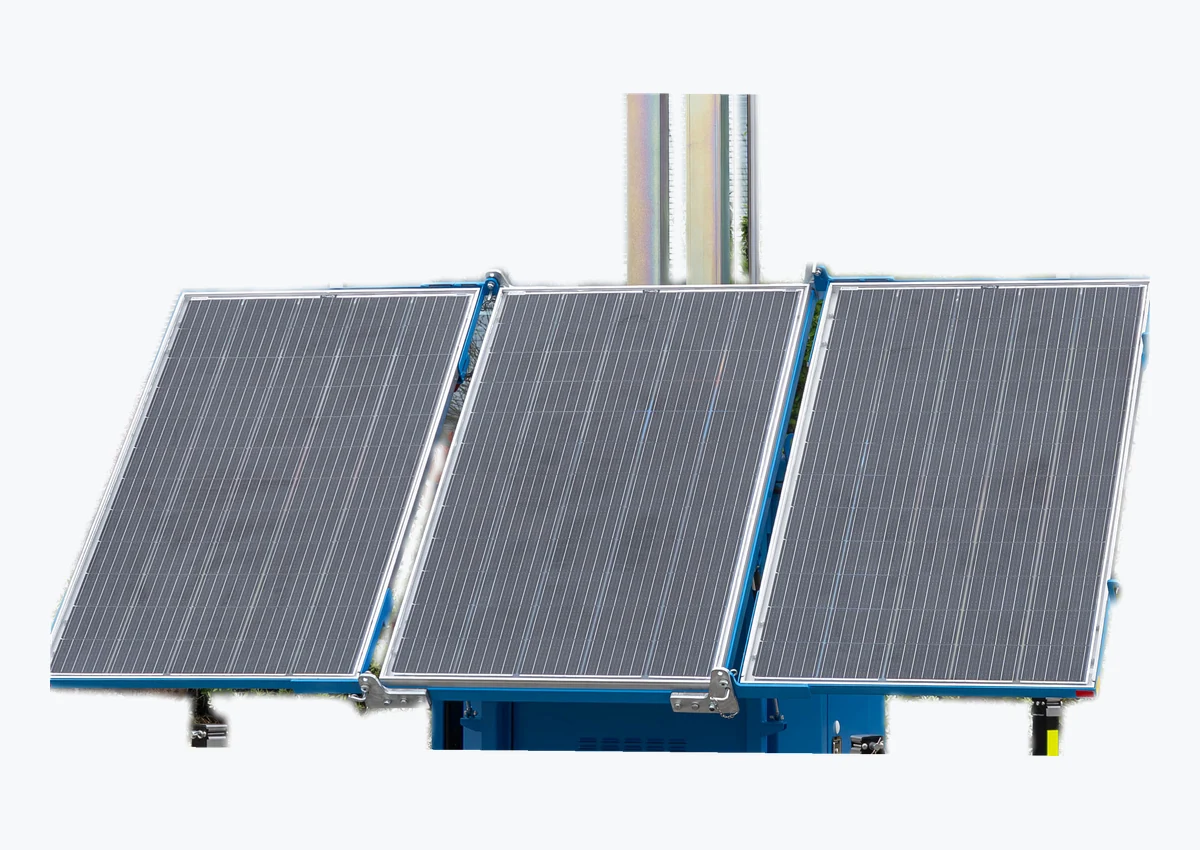

Review panel orientation, local sunlight and operating load together; the Skid-M array remains 3 × 340 W.

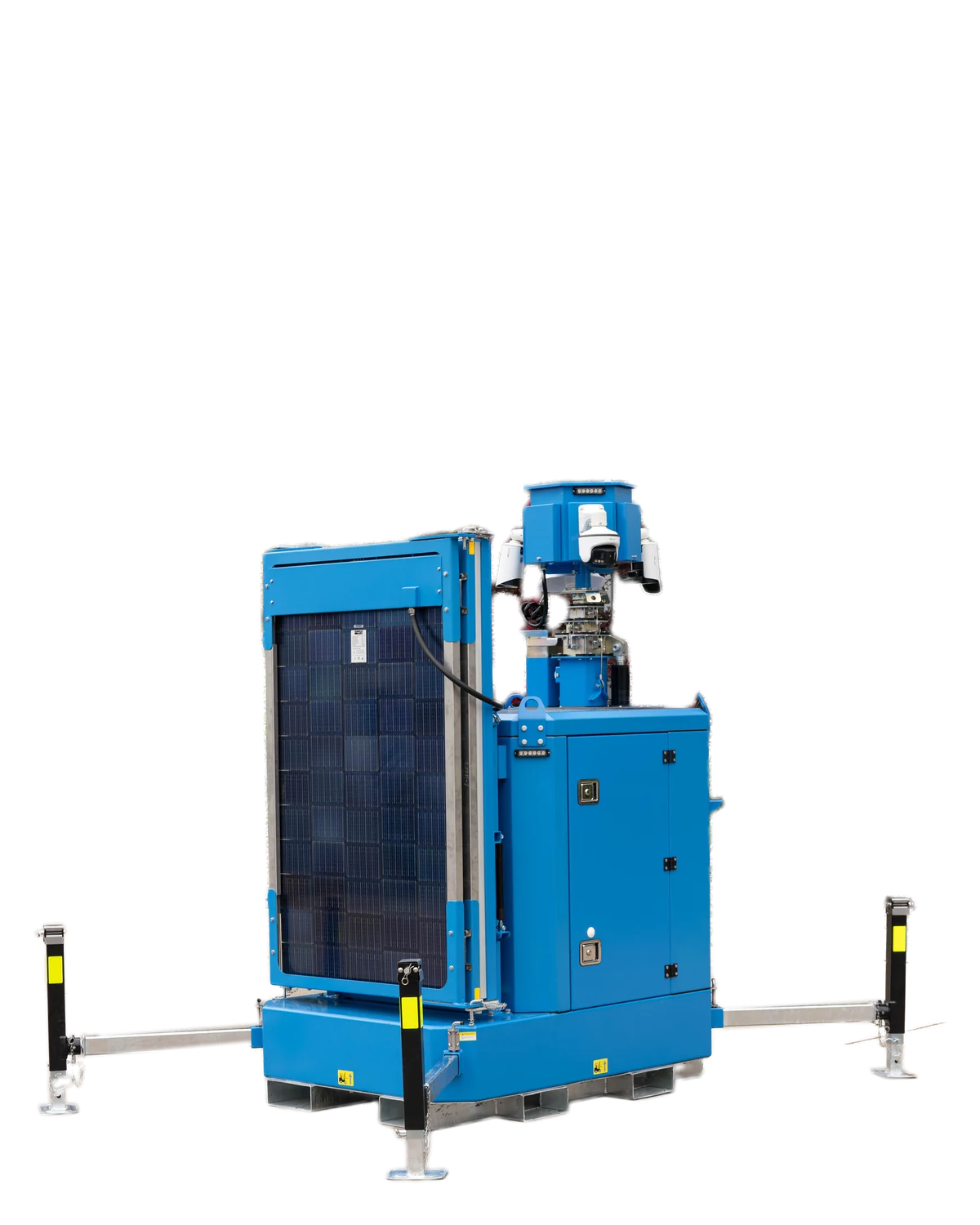

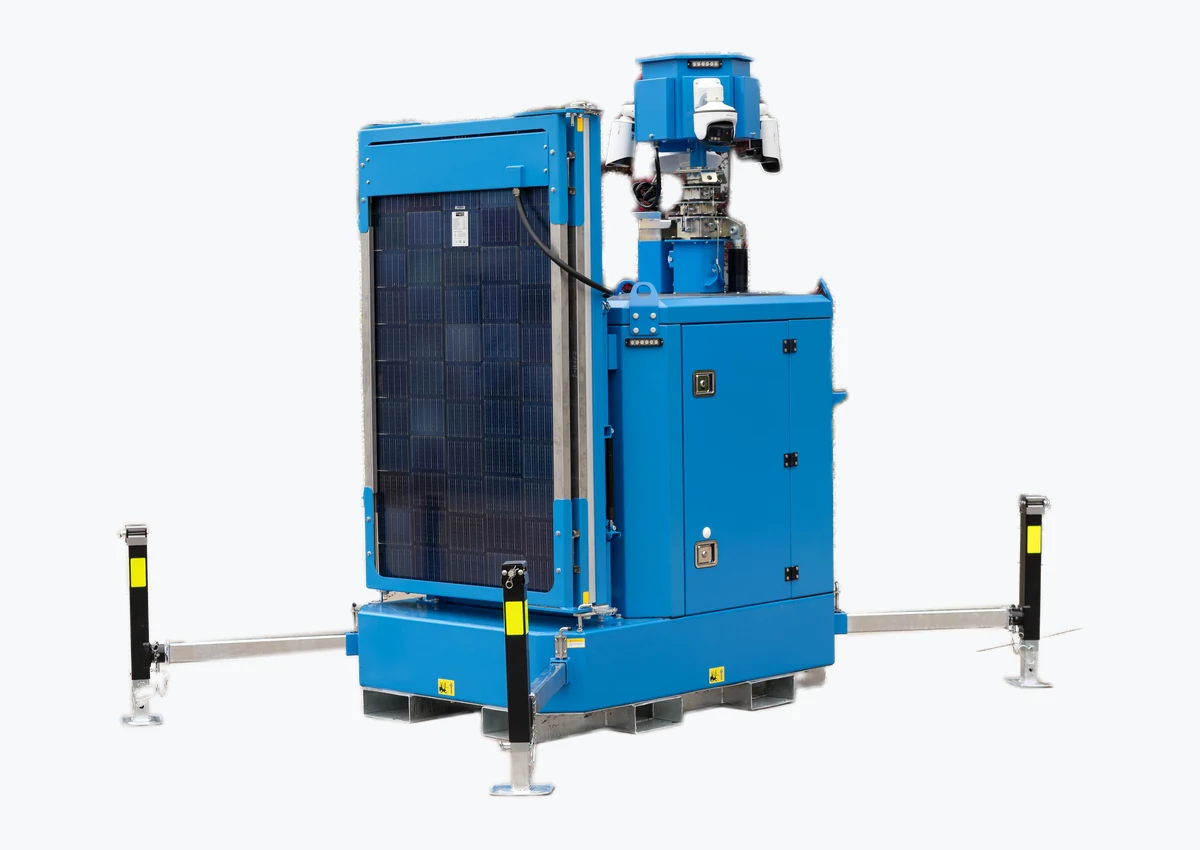

Review forklift handling, support clearance and cabinet access before positioning the unit.
03 / STRUCTURE & INTERFACES
Configuration drawings and interface confirmation are not supplied as approved downloadable documents. Request the technical package for your project.
04 / SPECIFICATIONS
| Item | Configuration / points to confirm |
|---|---|
| Brand and structure | VALIANT / Skid-M; forklift-compatible skid base |
| Solar panels | 3 × 340 W; 1020 W total |
| Mast | 6 / 7.5 / 9 m (≈19.7 / 24.6 / 29.5 ft); manual / electric / hydraulic lifting |
| Stabilizers | 4 manual supports |
| Battery options | Lead acid: 10.8 / 14.4 kWh; lithium: 11 / 16.5 / 22 kWh; Lead Sodium: 9.6 / 10.8 kWh |
| MPPT controller | Chinese MPPT / Victron MPPT |
| Inverter and AC charger | Inverter: none / 500 W / 1000 W; AC charger: yes / no |
| System voltage | DC12V / DC24V / DC48V |
| Cameras | Uniview / Hikvision / Milesight / Dahua; PTZ / bullet / other options |
| Camera box and rating | Square / hexagonal box; camera assembly protection IP65 |
| Recording and network | NVR and PoE switch: yes / no; router: 4G / 5G / none; cable: customizable / none |
| Environment and wind | Operating temperature: -35 to 50 °C; wind rating speed: 100 km/h |
| Warranty | 2 years; service terms subject to the order agreement |
| Transport and loading | L × W × H: 1580 × 1130 × 2280 mm (1.58 × 1.13 × 2.28 m; ≈5.18 × 3.71 × 7.48 ft), mast retracted; 6 units / 20 ft container, 14 units / 40 ft |
Source-provided ratings apply under their stated conditions. Confirm the final equipment, operating limits and order terms. Battery alternatives are options, not combined capacity.
05 / POWER & INTEGRATION
Solar panels charge the batteries through the MPPT controller. Stored energy powers the cameras, communications and controls, while the mast provides an elevated view. The system is designed for 24/7 monitoring; actual continuous runtime depends on sunlight, load and battery configuration.
LOOK BEYOND THE MAST

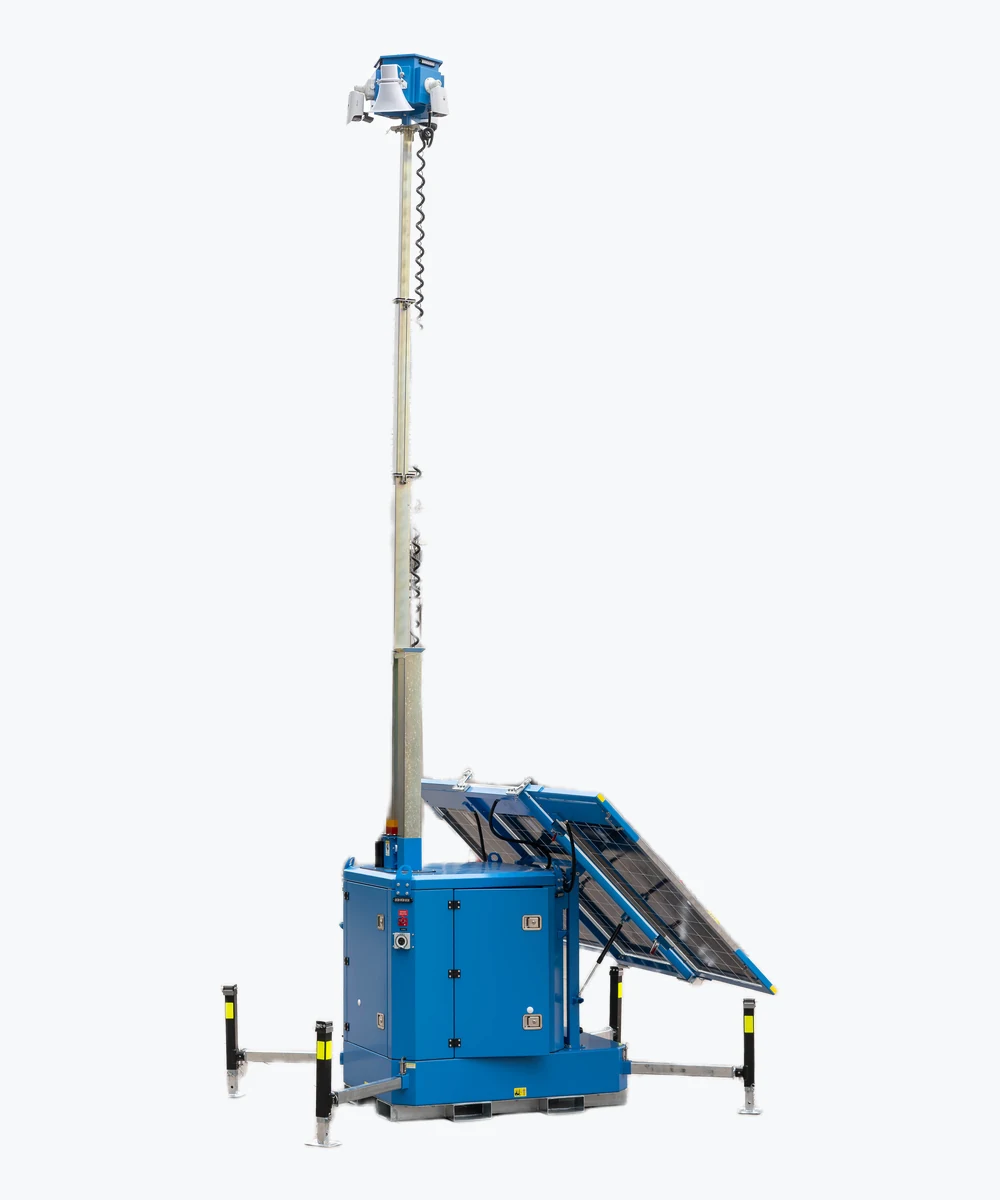

Use the side view to discuss panel clearance, cabinet access and the camera assembly with the team.
Review the configuration ↓06 / PERFORMANCE CONDITIONS
Measured site performance curves and a project-specific autonomy calculation are not included in the supplied materials. Runtime depends on local sunlight, usable storage, loads and losses.
07 / APPLICATIONS
Designed for temporary and remote sites without grid power or fixed surveillance infrastructure, for theft prevention, intrusion monitoring and remote viewing. Check ground support, stabilizer clearance, camera sightlines, sunlight and mobile network coverage before deployment.
Discuss camera sightlines, local obstacles, access and network availability.
Check orientation, obstructions and support conditions for the chosen equipment.
Supplied application photographs show equipment contexts and may depict other configurations. They are not verified Skid-M customer cases.
08 / SELECTION
Provide the site location, camera load, surveillance coverage, operating hours, sunlight and network conditions to select the battery, mast and camera configuration.
09 / PACKING, DELIVERY & SERVICE
Confirm forklift handling, transport, minimum order, lead time, packing and commissioning support. Container quantities depend on the final loading plan. Images are illustrative; the manufacturer reserves the right to change specifications.

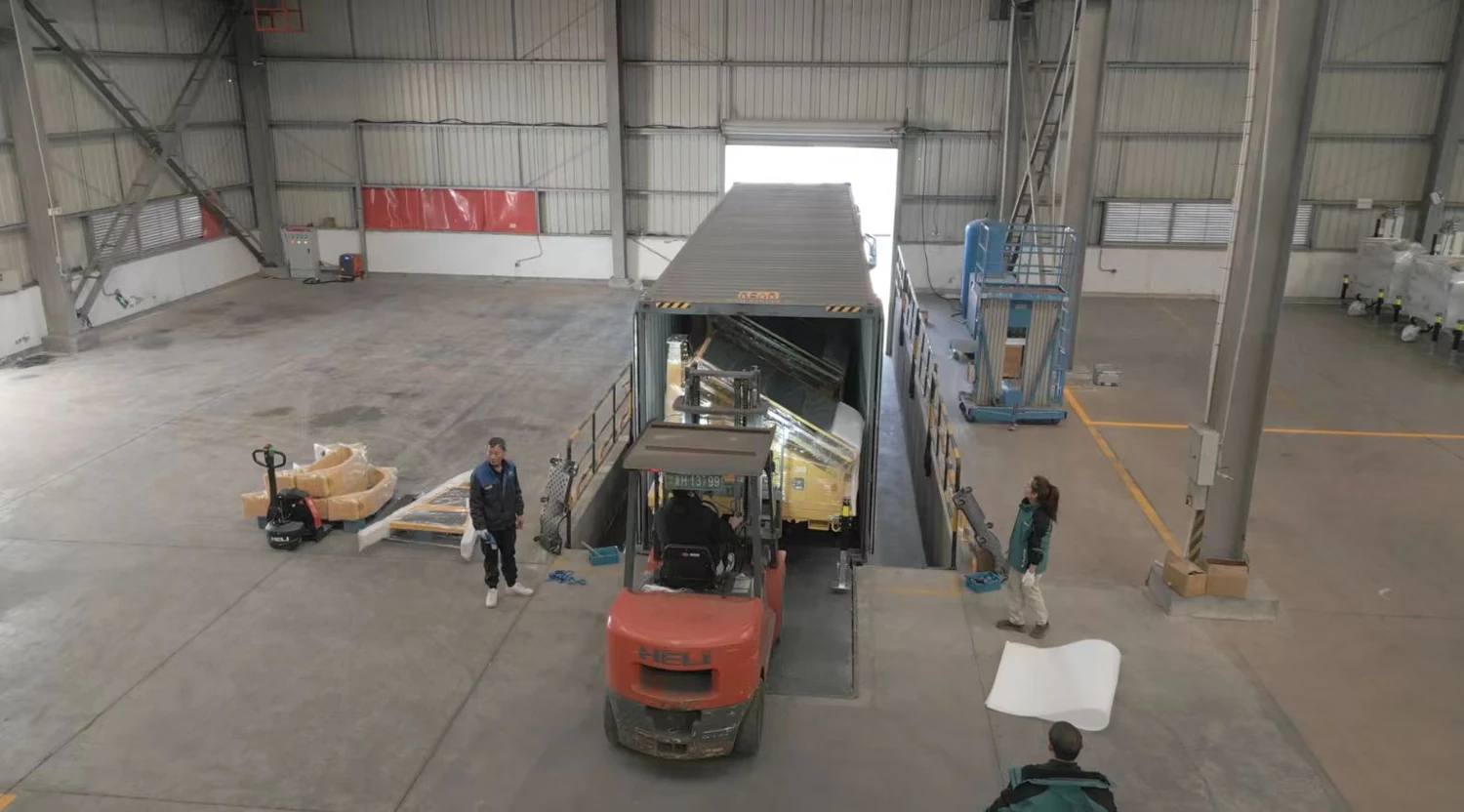

Handling photographs illustrate the company’s operations. Confirm packing and loading for the selected model and order.
10 / FAQ
This is a forklift-compatible skid unit; relocation requires suitable load transport.
Runtime must be calculated from local sunlight, load and storage capacity.
Camera, network, recording and electrical options follow the final technical proposal.
11 / DOCUMENTATION
A downloadable technical edition is pending document review. Request the configuration, drawings and applicable documentation; the private source originals are not public downloads.
Company certificate scans and verified customer-project evidence are pending. No certification badge or customer outcome is inferred from these equipment images.
