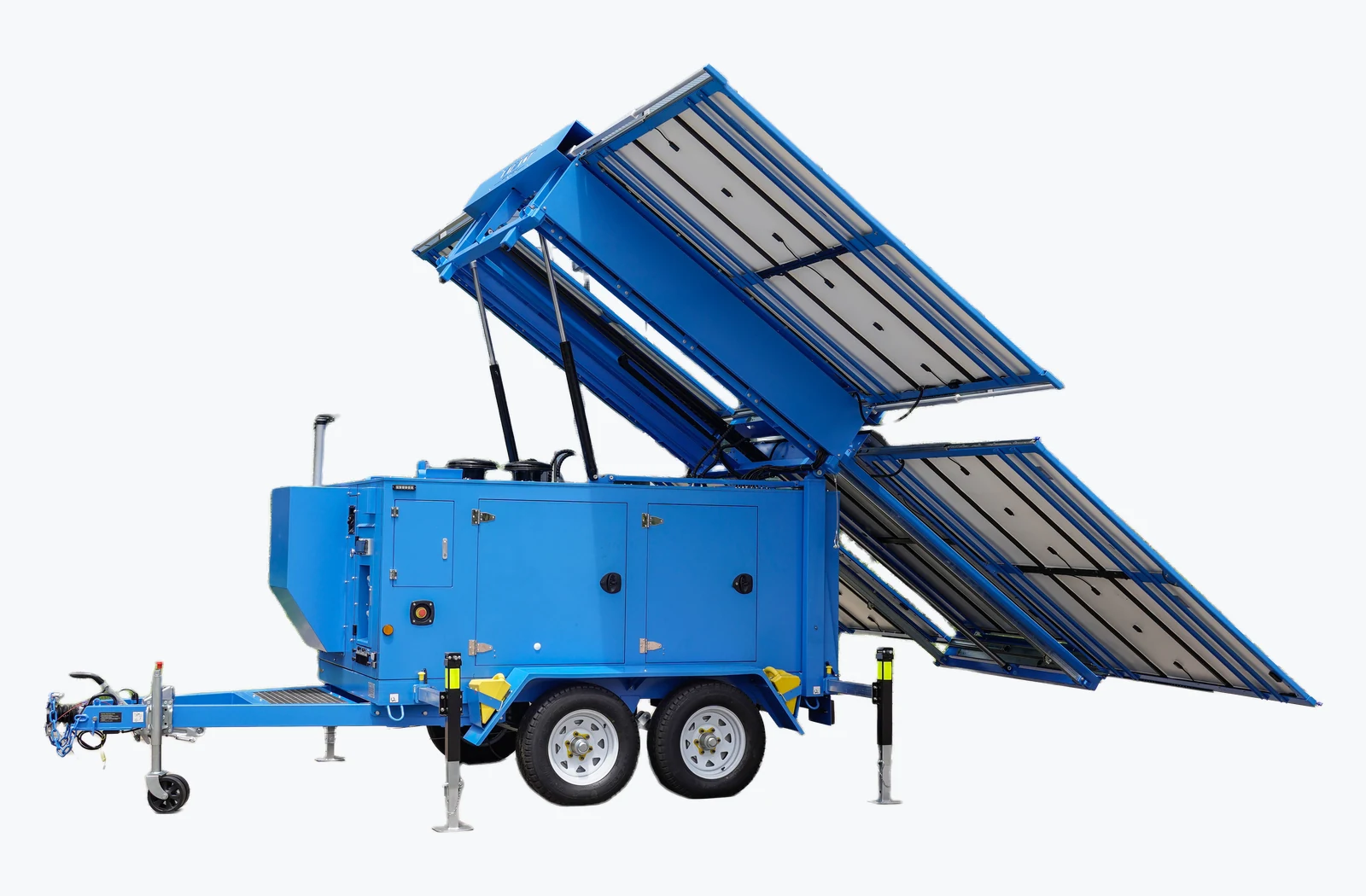

Combined solar generation and storage

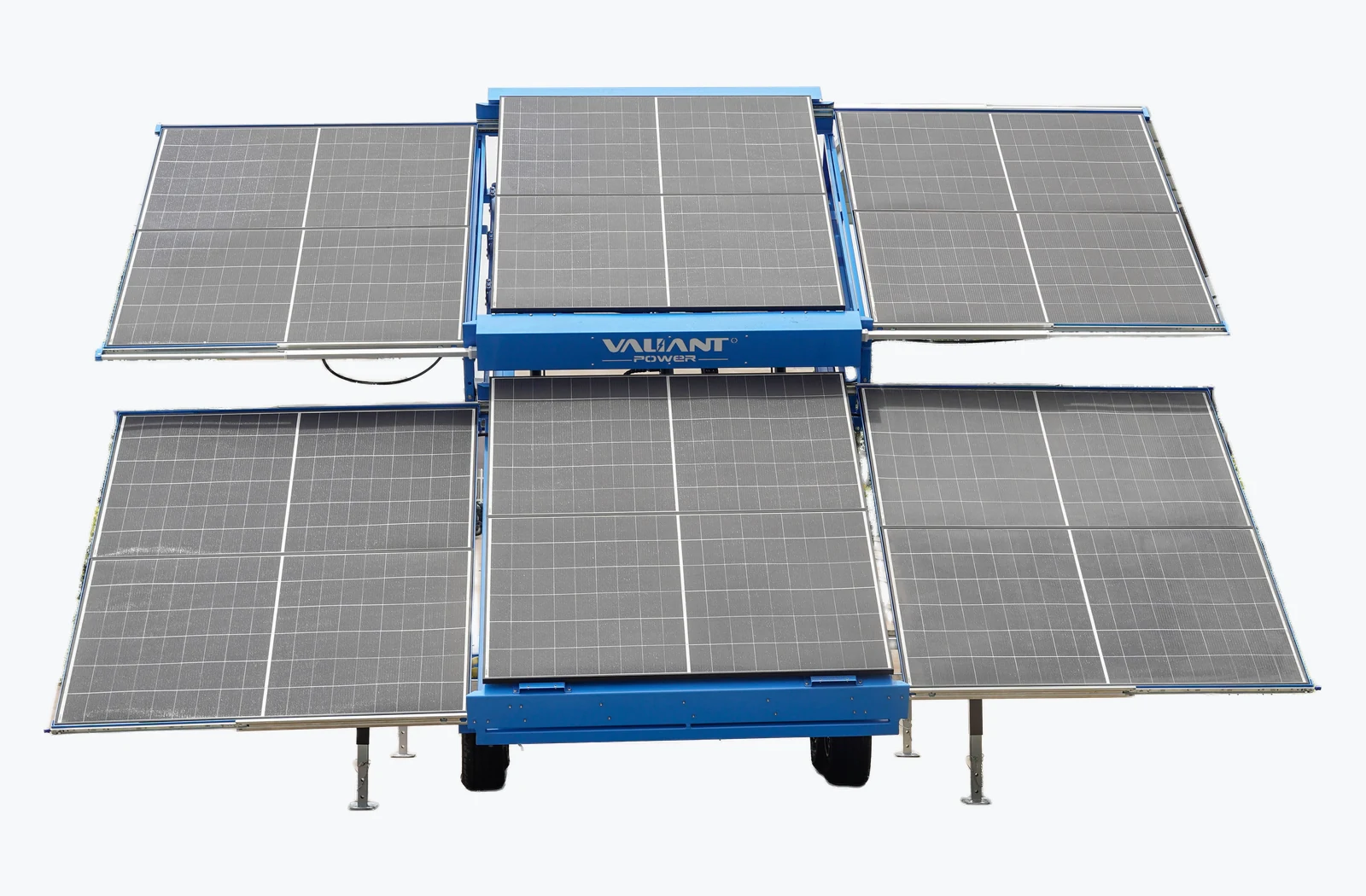

A Victron 150/60 MPPT controller manages solar charging. Ten AK-B-LV-EH5.0 modules form a 51.2 V battery pack with a stated maximum capacity of 51.2 kWh, allowing daytime generation to support later consumption.

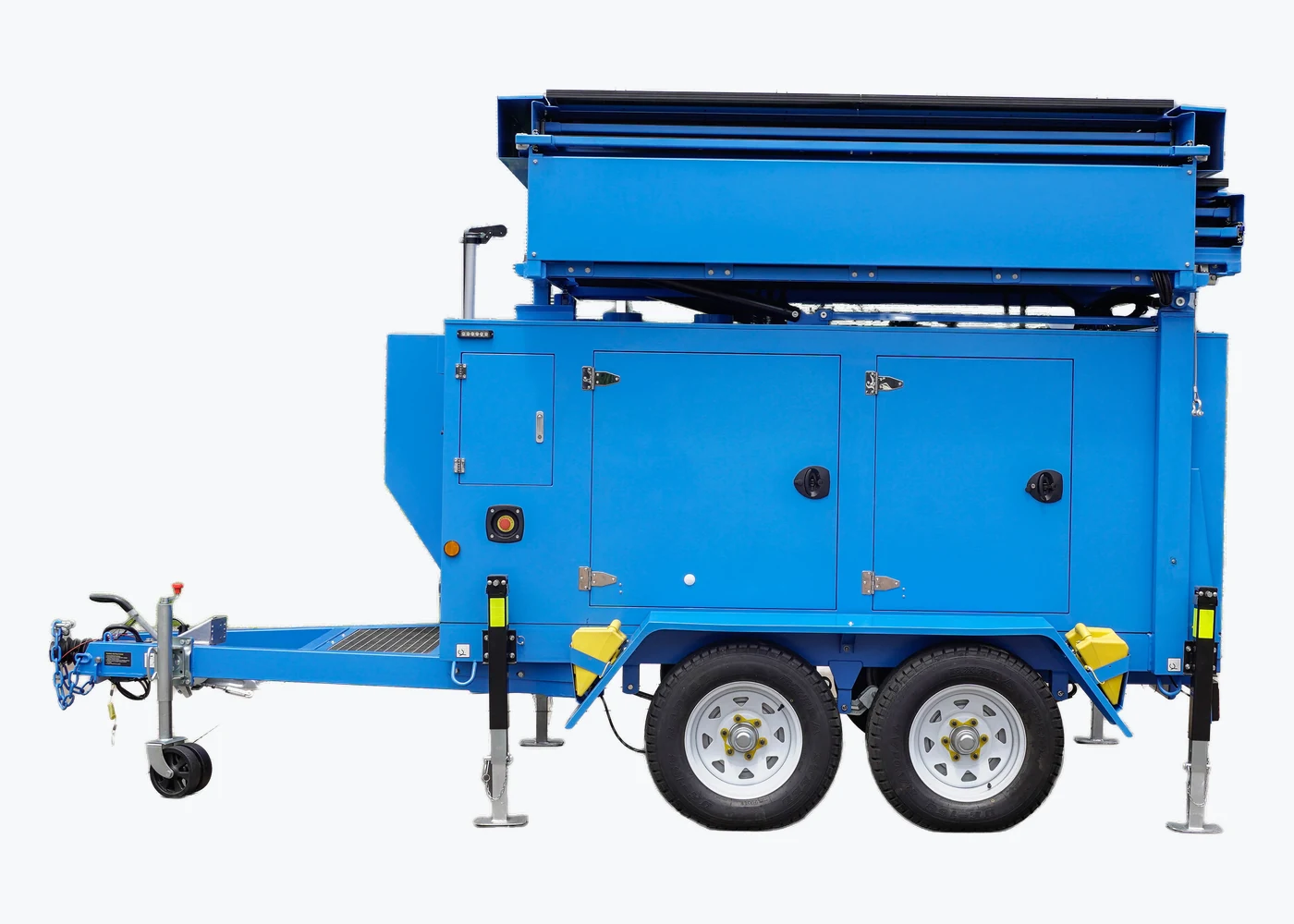

Transport configuration · folded panels
Mobile Solar Energy Storage System
VTS12P ESS
Solar generation battery storage and diesel backup
5.4 kW solar array · 51.2 kWh lithium battery · 30 kVA rated power
- Solar array
- 5.4 kW
- Format
- Mobile ESS
- Battery
- 51.2 kWh
Options shown follow the final technical proposal. Site conditions determine the operating plan.
01 / OVERVIEW
A complete platform.
A site-specific configuration.
The VALIANT VTS12P ESS integrates solar generation, lithium battery storage, inverters and a diesel generator in a mobile unit for sites with limited mains access. Twelve 450 W panels provide a 5.4 kW solar array, supported by 51.2 kWh of battery storage and a 35 kVA backup generator. The system allows supply planning around local sunlight and site loads, with a mobile format for relocation between projects.
02 / FEATURES
Built as one system.
Inverter supply with diesel backup
Three Victron Quattro inverters form part of the 30 kVA rated system. A 35 kVA, 400 V, 50 Hz generator with a liquid-cooled Hatz 4H50TICD engine provides a backup source for the site power plan when solar energy or stored energy is limited.
Mobile format for project deployment
The unit weighs 4000 kg and measures 4015×2200×2750 mm (4.015 × 2.2 × 2.75 m; ≈13.17 × 7.22 × 9.02 ft) with the tongue folded and mast retracted; width includes fenders. Confirm transport, handling, towing compatibility and positioning for each project.

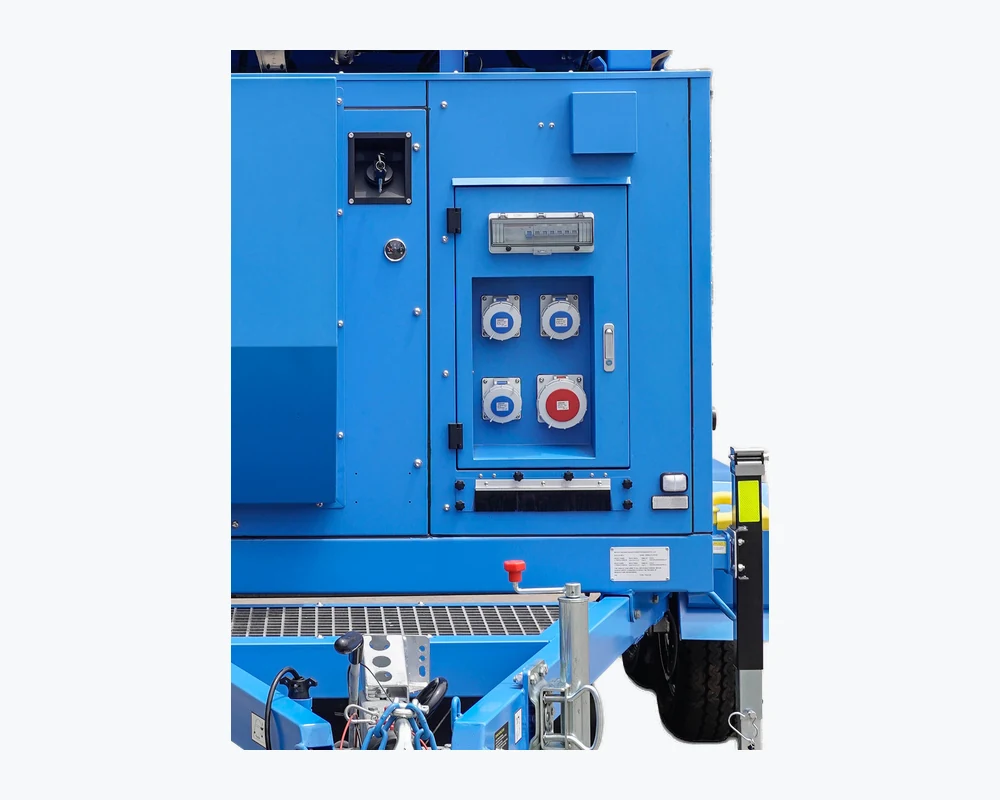

Controls & connection panel
Confirm line/phase voltages, connectors and wiring against the project technical proposal. A photograph does not replace the electrical drawing.

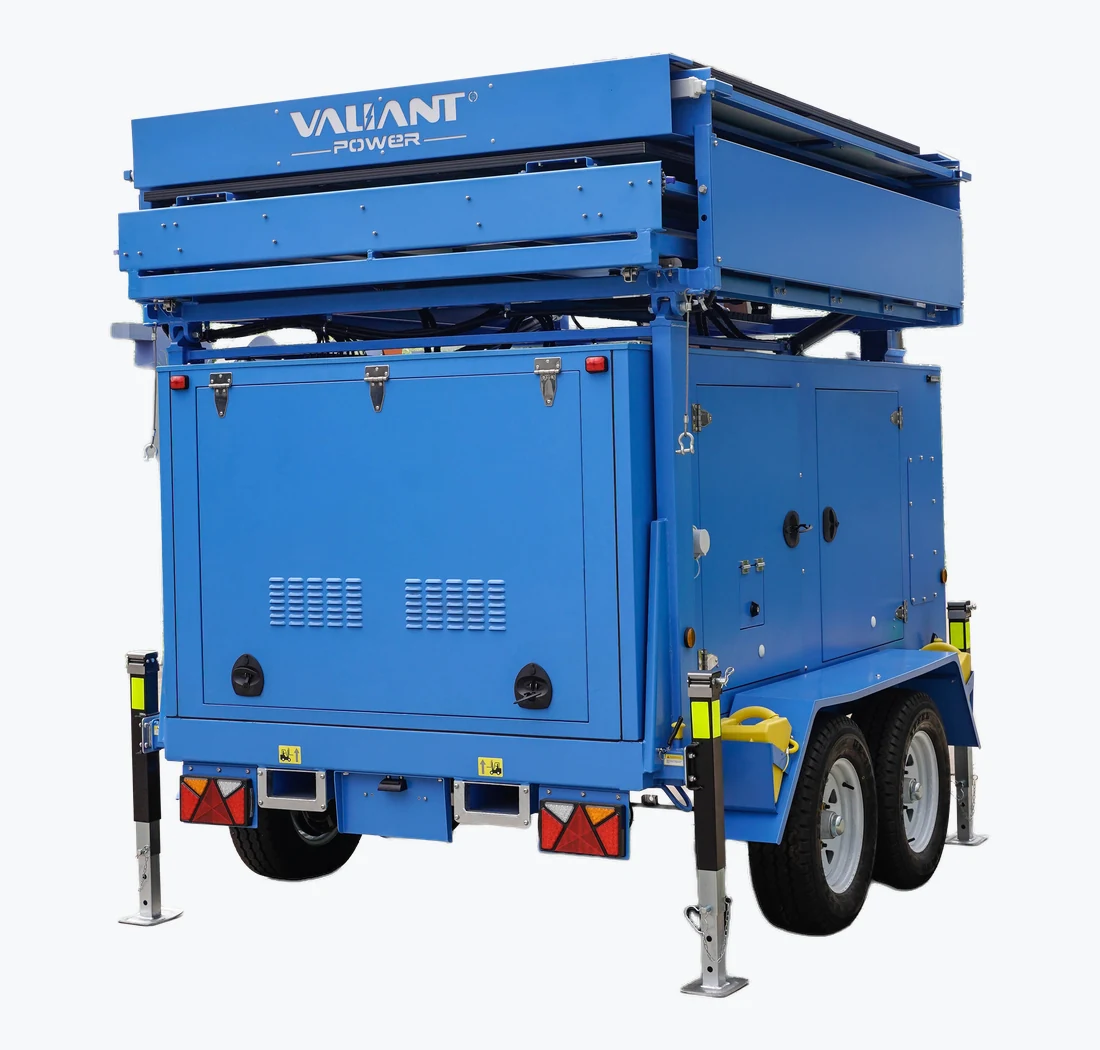

Cabinet & transport view
Check access, ventilation, handling and the space available for positioning.
03 / STRUCTURE & INTERFACES
Know the configuration.
Electrical interfaces & system layout.
- Inverters
- Victron Quattro×3; nominal battery 48 V; per unit at 25 °C: continuous 10000 VA / 8000 W, peak 20000 W; maximum efficiency 96%
- AC input
- Three-phase 400 V; 63 A, 5-pin; socket SP-3658-5P-63A
- AC output
- Three-phase 230 V; 63 A / 32 A; SP-209-5P-63A×1 and SP-1502-3P-32A×1
- Size and weight
- L×W×H 4015×2200×2750 mm (4.015 × 2.2 × 2.75 m; ≈13.17 × 7.22 × 9.02 ft), tongue folded and mast retracted, width including fenders; 4000 kg
DOCUMENTATION PENDING
Configuration drawings and interface confirmation are not supplied as approved downloadable documents. Request the technical package for your project.
04 / SPECIFICATIONS
The technical detail.
| Item | Configuration / points to confirm |
|---|---|
| Model and rating | VALIANT / VTS12P ESS; 30 kVA; 50 Hz |
| Solar array | 12×450 W; 5400 W total |
| Lithium battery | AK-B-LV-EH5.0×10; 51.2 V; maximum 51.2 kWh; rated 6000 cycles |
| MPPT controller | Victron 150/60; maximum PV short-circuit current 50 A; PV open-circuit limit 150 V, start-up/operating maximum 145 V |
| Inverters | Victron Quattro×3; nominal battery 48 V; per unit at 25 °C: continuous 10000 VA / 8000 W, peak 20000 W; maximum efficiency 96% |
| AC input | Three-phase 400 V; 63 A, 5-pin; socket SP-3658-5P-63A |
| AC output | Three-phase 230 V; 63 A / 32 A; SP-209-5P-63A×1 and SP-1502-3P-32A×1 |
| Diesel generator | 35 kVA; 400 V; three-phase; 50 Hz; 1500 rpm; Hatz 4H50TICD engine; liquid cooling |
| Fuel tank and noise | 130 L; 75 dB(A) at 7 m (≈23.0 ft) |
| Alternator | NPE32 VL4C; 35 kVA / 400 V; insulation class H; protection degree 23; AVR |
| Size and weight | L×W×H 4015×2200×2750 mm (4.015 × 2.2 × 2.75 m; ≈13.17 × 7.22 × 9.02 ft), tongue folded and mast retracted, width including fenders; 4000 kg |
Source-provided ratings apply under their stated conditions. Confirm the final equipment, operating limits and order terms. Battery alternatives are options, not combined capacity.
05 / POWER & INTEGRATION
How the system works.
- 01
Solar generation
- 02
MPPT & storage
- 03
Inverter output
- 04
Diesel backup
Solar panels supply DC electricity through the MPPT controller to charge the batteries. Inverters convert stored energy into AC power for connected loads, while the diesel generator provides a backup source within the agreed system design. Confirm ground conditions, panel clearance, ventilation and earthing before qualified personnel connect the unit. Round-the-clock operation depends on demand, sunlight, usable storage and fuel availability; confirm switching and control functions in the project configuration.
06 / PERFORMANCE CONDITIONS
Plan performance around the site.
DOCUMENTATION PENDING
Measured site performance curves and a project-specific autonomy calculation are not included in the supplied materials. Runtime depends on local sunlight, usable storage, loads and losses, plus backup fuel availability.
07 / APPLICATIONS
Start with the application.
Potential uses include construction sites, remote work areas, temporary events, emergency power and off-grid projects. Check load voltage, phase arrangement, continuous demand, starting current and daily energy consumption before selection. Electrical interfaces and environmental suitability must match the intended equipment and site.
08 / SELECTION
Define the working conditions.
Battery: 0 to 65 °C. MPPT: -30 to +60 °C, full output up to 40 °C; IP43 electronics / IP22 connections. Confirm whole-unit environmental limits and cycle-life conditions. Provide the load list, operating schedule and local sunlight.
01 / Location & environment02 / Load & operating hours03 / Handling & interfaces
09 / PACKING, DELIVERY & SERVICE
Plan the move and the order.
Reference loading is four units per 40 ft container; confirm the loading and securing plan. Agree lead time, packing, transport, warranty, commissioning support and destination compliance. The quotation and order define the final configuration.
Handling photographs illustrate the company’s operations. Confirm packing and loading for the selected model and order.
10 / FAQ
Before you choose.
Does 30 kVA mean 30 kW?
No. Active power depends on power factor, temperature and system configuration.
How long does a full charge last?
Calculate from usable capacity, demand and losses; 51.2 kWh does not specify a fixed runtime.
Will it connect to my equipment?
The data list 400 V three-phase input and 230 V three-phase output. Confirm line/phase voltages and socket wiring.
11 / DOCUMENTATION
Documentation for your project.
DOCUMENTATION PENDING
Request technical documents A downloadable technical edition is pending document review. Request the configuration, drawings and applicable documentation; the private source originals are not public downloads.
Supporting evidence, with its scope.
DOCUMENTATION PENDING
Company certificate scans and verified customer-project evidence are pending. No certification badge or customer outcome is inferred from these equipment images.
13 / INQUIRY
Discuss your VTS12P ESS.
Send the project location, load list and estimated quantity to stephen@valiantsolarpower.com. Phone: +86 18868089298.
START WITH THE REQUIREMENTS
Tell us about your site.
Share the application, project location, loads and operating conditions. Discuss configuration and purchasing details with the team.
